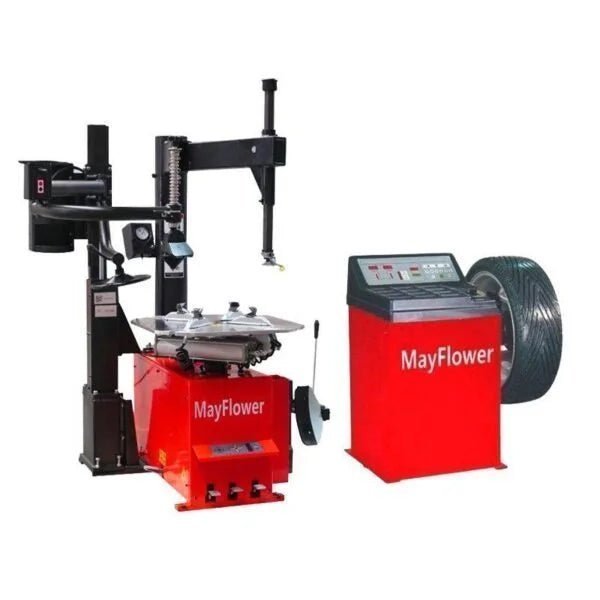

1.5HP Automatic Tire Changer And Wheel Balancer Combo

Streamline your tire service workflow with this automatic tire changer wheel balancer combo, engineered to handle standard passenger vehicles and run-flat assemblies without manual reconfiguration. The integrated unit pairs a 1.5 horsepower pneumatic mounting tower with a fast electronic wheel balancer, delivering consistent rotational calibration while optimizing floor space in commercial repair facilities.

The mounting station clamps rims from 13 to 24 inches externally and 15 to 28 inches internally, powered by a 5,600-pound-force bead breaker and protected rotary clutch. Operating on 110 volts with a 120–145 psi air feed, it fills an internal reserve tank for rapid inflation and bead blasting of tires up to 49 inches in diameter. A mounted 300 assist arm guides the toolhead along stiff sidewalls, minimizing operator strain.

Operational Specifications

• Balancer cycle time: 6–9 seconds achieving ±1g accuracy
• Spin testing capacity: Max 155 lbs, 44″ diameter, 1.5″–20″ width
• Program modes: Standard dynamic, static, ALU 1-3, motorcycle
• Accessories included: Quick-release wing nut, three centering cones, four clamp guards
• Cabinet finish: Heavy-duty red powder coating with steel chassis

Merging tire separation with precision balancing cuts station transition time and keeps production moving smoothly. Examine these engineering tolerances to confirm fit for your workshop inventory before finalizing your purchase.
