CountyLine 28 Ton Gas Powered Hydraulic Log Splitter
$1,907.95

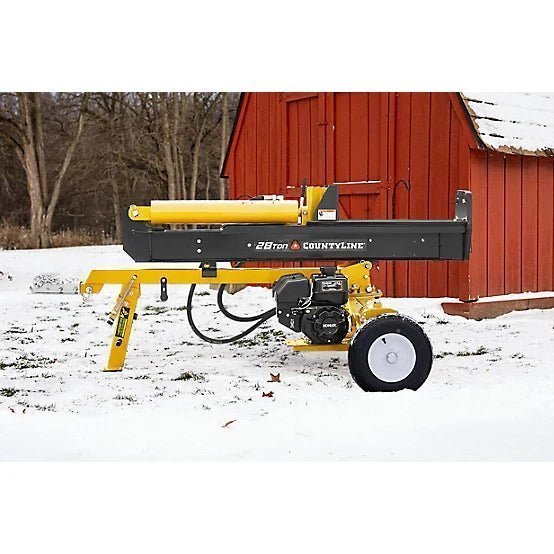

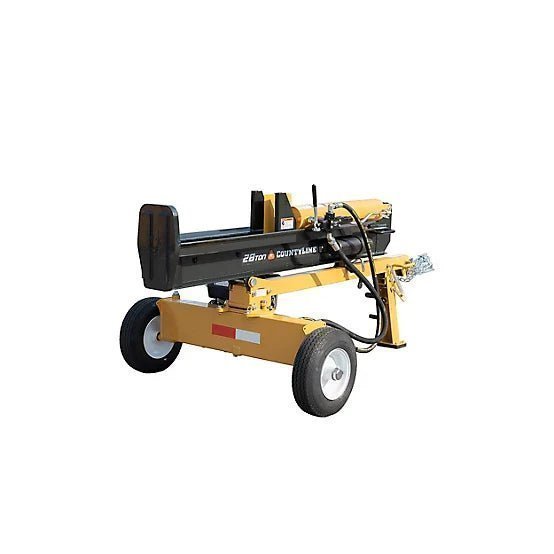

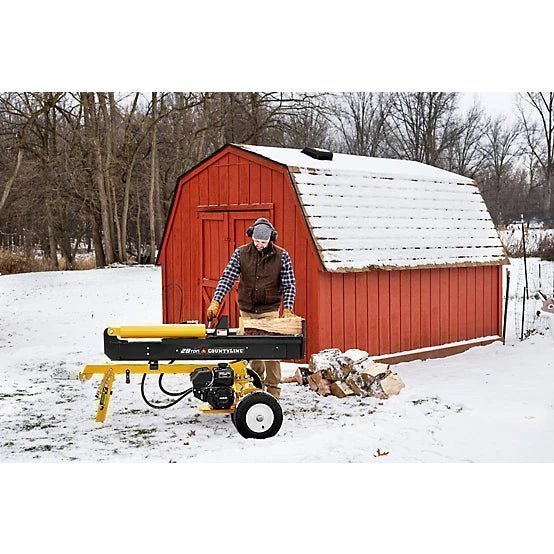

The CountyLine 28-Ton Gas-Powered Horizontal/Vertical Log Splitter moves 28 tons of hydraulic ram force to process hardwoods up to 36 inches in diameter in approximately 13 seconds per cycle. Powered by a 196cc Kohler SH270 engine, this unit delivers 6.5 horsepower and 10.2 ft-lbs of torque while meeting strict CARB-compliance standards. Its frame pivots for vertical operation to safely handle oversized rounds, working alongside the self-locking ground stand to anchor the unit firmly on soil or concrete during active splitting. An automatic return valve resets the ram instantly, while the 4-gallon internal reservoir reduces mid-session interruptions. Heavy-duty 16-inch DOT-approved pneumatic tires and a rear ball coupler allow steady towing behind utility vehicles without compromising ground clearance.

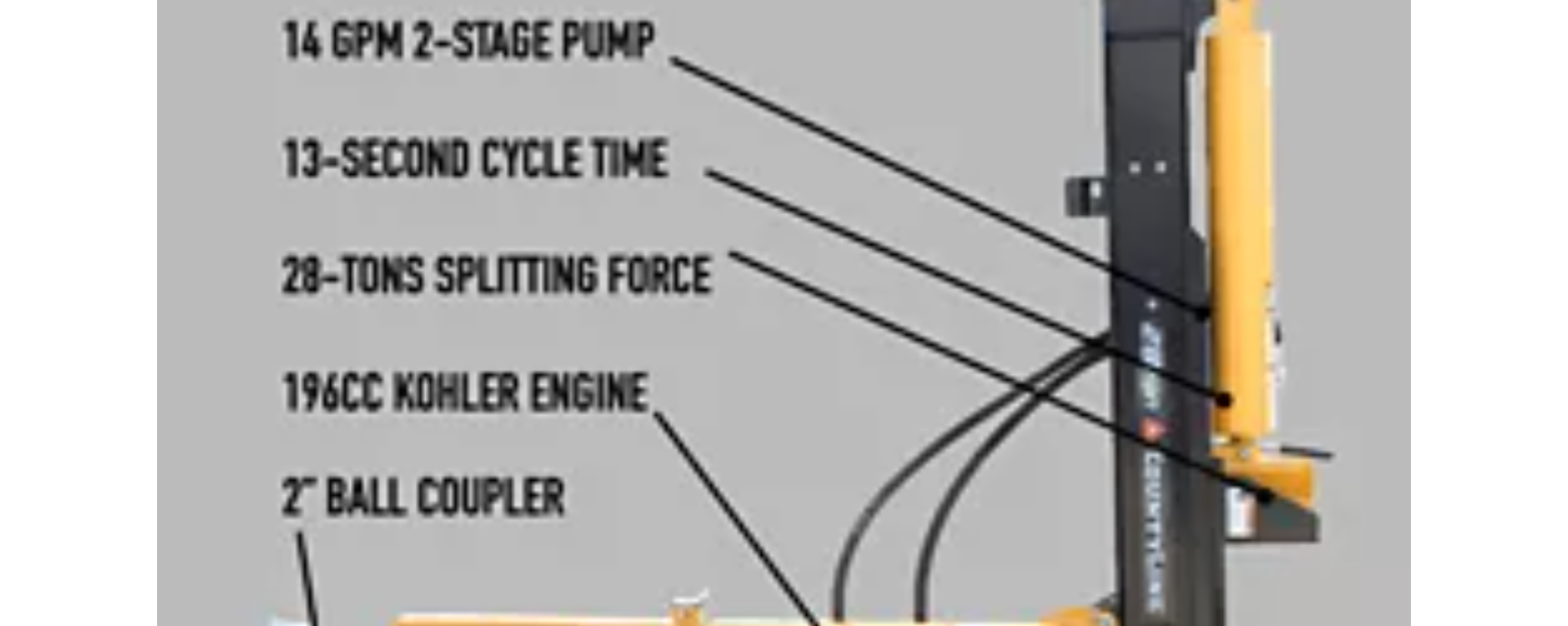

- Full-hydraulic circuit running at 3,800 PSI with a 14 GPM two-stage pump
- Structural steel beam spanning 90.55 inches to maintain precise wedge alignment
- Accessible service panels exposing the air filter and spark plug for quick upkeep
- Manual ignition assembly utilizing a dual ball-bearing crankshaft for rapid cold starts
Rated for repetitive winter preparation and sudden storm cleanup, this splitter combines industrial-grade hydraulics with residential maneuverability. Review the full dimensional profile and secure your unit before peak firewood season begins.
| Brand | CountyLine |
| Country of Origin | Imported |
| Amperage | 0 Amp |
| Cycle Time | 13 sec. |
| DisclaimerARS-CARBCompliant | Yes |
| DisclaimerARS-GasPower | Yes |
| Engine Displacement | 196cc |
| Engine Type | 4-cycle |
| Fuel Tank Capacity | 3.3 L |
| Horsepower | 6.5 HP |
| Hydraulic Capacity | 4 gal. |
| Log Splitter Features | DOT Approved, Portable, Automatic Return, Hydraulic |
| Log Splitter Maximum Log Diameter Range | 21 – 30 inches |
| Log Splitter Maximum Log Length | 26 in |
| Log Splitting Force | 28 ton |
| Maximum Log Diameter | 36 in. |
| Maximum PSI | 3,800 PSI |
| Engine Brand | Kohler |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Gas |
| Primary Material | Steel |
| Product Height | 39.37 in. |
| Product Length | 90.55 in. |
| Product Weight | 492 lb. |
| Product Width | 47.64 in. |
| Pump Rating | 14 GPM |
| Recommended Oil Type | Kohler 10W-30 |
| Start Type | Manual |
| Tire Size | 16 in. |
| Torque | 10.2 ft./lbs. |
| Warranty | 5-year warranty on materials and workmanship, 3-year engine warranty and 3-year hydraulic warranty |
| Manufacturer Part Number | YTL-050-029 |
